Flow rate: 25000 l/h (6667 gallons/ hour)
Volume per day: 600000 liters ( 600 cbm ) (160000 gpd)
APPLICATIONS
Hellas Pure Water H2O Osmosis can be used in multiple range of water treatment processes as pharmaceutical, process water, rinse water, steam boilers, heating and cooling circuits, agriculture, desalinisation, food and beverages, automotive industry ( self service car wash), glass washing, cleaning – any application that needs to use demineralised water.
It delivers demineralised water by reverse osmosis process. This means a reduction of up to 95-99% of water conductivity ( or TDS) and the result is a demineralized water . This means that from 100 ppm TDS after the reverse osmosis module we will remain with between 5 and 1 ppm depending on the water quality, ph and water temperature.

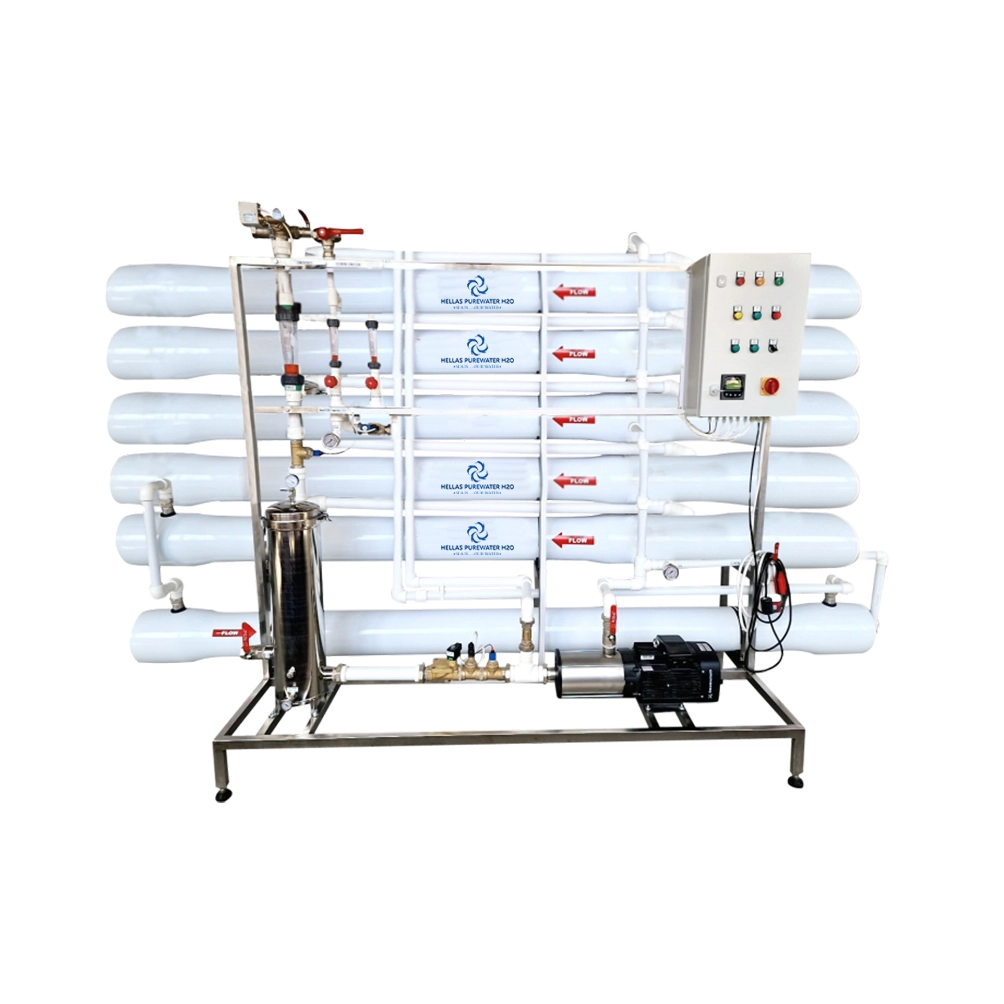

EQUIPMENT
Osmotic membranes 8040 – Included !
High Pressure Pump
8040 SS Membrane housings
Mechanical Prefilter
Solenoid valves
Regulating Valves ( concentrate and recirculation )
Stainless steel frame & panel
Low pressure switch – to protect the system
Permeate – Concentrate and Recirculation Flowmeter
Recirculation function – reduces the drain water flow
Controller ROC 8221
OPTIONS
Raw water mixing valve
CIP login
TECHNICAL DATA -Model : Chris Teo 1000
Flow rate: 25000 l/h (6667 gallons/hour)
Volume per day: 600000 liters ( 600 mc ) (160000 gpd)
Osmotic membrane (type/pieces): 8040 / 21
Salt rejection: 95 – 99%
Recovery: 50 – 75%
Maximum TDS: 1500 PPM
Operating pressure: 6-12 bar
Maximum pressure: 15 bar
Electrical supply: 380V
Power consumption: 15 kW
Pre-filtration: 5 microns
Minimum water pressure supply: 2 bar
Water temperature: 5-35 C
Only inlet water without chlorine
CONNECTIONS
Permeate: 2″
Concentrate: 2″
Inlet: 2″
Dimensions: L x W x H: 3800x820x1950 cm
